SKF轴承FBSA209/QBC
最近更新：2017-4-25
凯诺永晟轴承有限公司专业经销SKF轴承,FBSA209/QBC轴承在我公司有售,SKF角接触推力球轴承 for screw drives, cartridge units with flanged housingFBSA209/QBC轴承参数为:45mm×124mm×106mm,我公司还经营其他进口轴承品牌的SKF FBSA209/QBC轴承同类产品及FBSA209/QBC轴承相关替代型号,需要FBSA209/QBC轴承的图纸、报价等资料请联系销售人员!咨询电话:0512-57922999/000
公司还为您推荐以下型号： FBSA209/DF轴承 44157/44363D轴承 RNA4901轴承 HCB7207-C-2RSD-T-P4S轴承 51418轴承 B7019-C-T-P4S轴承 6203-ZN轴承 442-S/432D轴承 32938JR轴承 RNA4901RS轴承 HCB7207-C-T-P4S轴承 FBSA209/QFC轴承
报 价：电询0512-57922999/000
品 牌：SKF
系 列：角接触推力球轴承 for screw drives, cartridge units with flanged housing
型 号：FBSA209/QBC
内 径：45
外 径：124
厚 度：106
品 牌：SKF
系 列：角接触推力球轴承 for screw drives, cartridge units with flanged housing
型 号：FBSA209/QBC
内 径：45
外 径：124
厚 度：106
SKF轴承FBSA209/QBC尺寸参数
| 角接触推力球轴承 for screw drives, cartridge units with flanged housing | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 轴和轴承座公差 | |||||||||||
|
|||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 预压 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 45 | 124 | 106 | 73,35 | 268 | 9,8 | 3150 | 1575 | 9,4 | FBSA 209/ QBC | BSQU 245 TDT | |

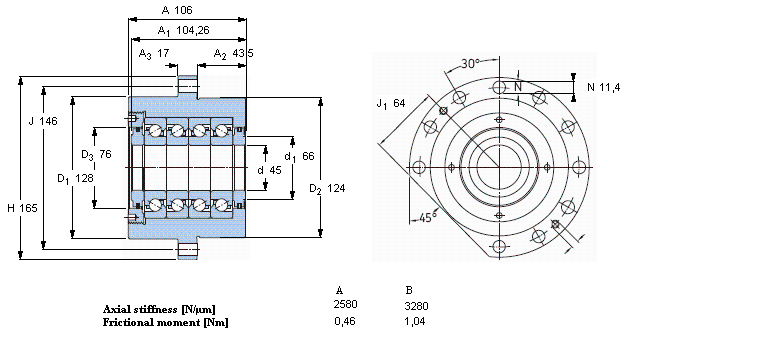

FBSA209/QBC轴承 样本图纸
