SKF轴承FBSA204/QFC
最近更新：2017-4-25
凯诺永晟轴承有限公司专业经销SKF轴承,FBSA204/QFC轴承在我公司有售,SKF角接触推力球轴承 for screw drives, cartridge units with flanged housingFBSA204/QFC轴承参数为:20mm×60mm×77mm,我公司还经营其他进口轴承品牌的SKF FBSA204/QFC轴承同类产品及FBSA204/QFC轴承相关替代型号,需要FBSA204/QFC轴承的图纸、报价等资料请联系销售人员!咨询电话:0512-57922999/000
公司还为您推荐以下型号： FBSA204/QBC轴承 23040CAE4轴承 6317-2Z轴承 NJ2212ECJ轴承 6803LU轴承 32311轴承 24040CE4轴承 7317-B-JP轴承 NJ2212ECM轴承 6802LB轴承 32310轴承 FBSA205/DB轴承
报 价：电询0512-57922999/000
品 牌：SKF
系 列：角接触推力球轴承 for screw drives, cartridge units with flanged housing
型 号：FBSA204/QFC
内 径：20
外 径：60
厚 度：77
品 牌：SKF
系 列：角接触推力球轴承 for screw drives, cartridge units with flanged housing
型 号：FBSA204/QFC
内 径：20
外 径：60
厚 度：77
SKF轴承FBSA204/QFC尺寸参数
| 角接触推力球轴承 for screw drives, cartridge units with flanged housing | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 轴和轴承座公差 | |||||||||||
|
|||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 预压 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 20 | 60 | 77 | 35,86 | 98 | 3,6 | 4750 | 2375 | 1,7 | FBSA 204/ QFC | BSQU 220 TFT | |

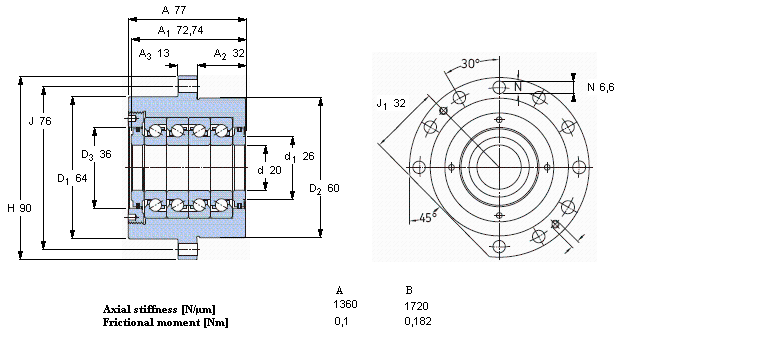

FBSA204/QFC轴承 样本图纸
