SKF轴承FBSA208/DF
最近更新：2017-4-25
凯诺永晟轴承有限公司专业经销SKF轴承,FBSA208/DF轴承在我公司有售,SKF角接触推力球轴承 for screw drives, cartridge units with flanged housingFBSA208/DF轴承参数为:40mm×124mm×66mm,我公司还经营其他进口轴承品牌的SKF FBSA208/DF轴承同类产品及FBSA208/DF轴承相关替代型号,需要FBSA208/DF轴承的图纸、报价等资料请联系销售人员!咨询电话:0512-57922999/000
公司还为您推荐以下型号： FBSA208/DB轴承 23088EW33轴承 26126X/26283轴承 23088BKD1+H3088轴承 22338-MB轴承 NU1096MA轴承 BHA1012Z轴承 7205B轴承 SL192330-TB轴承 51408轴承 FNL518A轴承 FBSA208/QBC轴承
报 价：电询0512-57922999/000
品 牌：SKF
系 列：角接触推力球轴承 for screw drives, cartridge units with flanged housing
型 号：FBSA208/DF
内 径：40
外 径：124
厚 度：66
品 牌：SKF
系 列：角接触推力球轴承 for screw drives, cartridge units with flanged housing
型 号：FBSA208/DF
内 径：40
外 径：124
厚 度：66
SKF轴承FBSA208/DF尺寸参数
| 角接触推力球轴承 for screw drives, cartridge units with flanged housing | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 轴和轴承座公差 | |||||||||||
|
|||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 预压 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 40 | 124 | 66 | 42,5 | 112 | 4,15 | 5040 | 2520 | 6,1 | FBSA 208/ DF | BSDU 240 FF | |

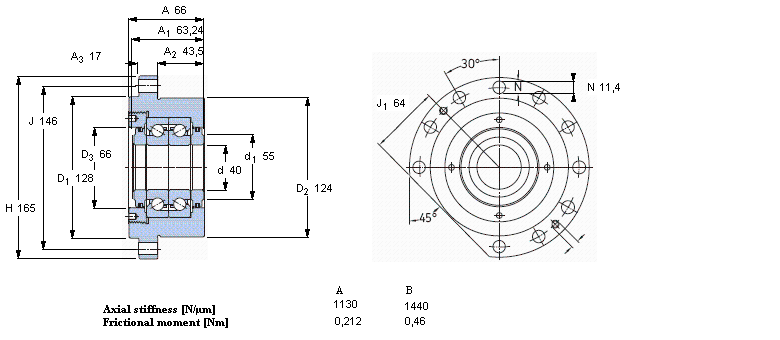

FBSA208/DF轴承 样本图纸
