SKF轴承FBSA205/QBC
最近更新：2017-4-25
凯诺永晟轴承有限公司专业经销SKF轴承,FBSA205/QBC轴承在我公司有售,SKF角接触推力球轴承 for screw drives, cartridge units with flanged housingFBSA205/QBC轴承参数为:25mm×80mm×82mm,我公司还经营其他进口轴承品牌的SKF FBSA205/QBC轴承同类产品及FBSA205/QBC轴承相关替代型号,需要FBSA205/QBC轴承的图纸、报价等资料请联系销售人员!咨询电话:0512-57922999/000
公司还为您推荐以下型号： FBSA205/DF轴承 15112轴承 LM67043轴承 61824N轴承 61826N轴承 15113轴承 61822N轴承 M86647轴承 61821N轴承 02474轴承 61820N轴承 FBSA205/QFC轴承
报 价：电询0512-57922999/000
品 牌：SKF
系 列：角接触推力球轴承 for screw drives, cartridge units with flanged housing
型 号：FBSA205/QBC
内 径：25
外 径：80
厚 度：82
品 牌：SKF
系 列：角接触推力球轴承 for screw drives, cartridge units with flanged housing
型 号：FBSA205/QBC
内 径：25
外 径：80
厚 度：82
SKF轴承FBSA205/QBC尺寸参数
| 角接触推力球轴承 for screw drives, cartridge units with flanged housing | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 轴和轴承座公差 | |||||||||||
|
|||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 预压 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 25 | 80 | 82 | 36,512 | 104 | 3,86 | 4500 | 2250 | 3,5 | FBSA 205/ QBC | BSQU 225 TDT | |

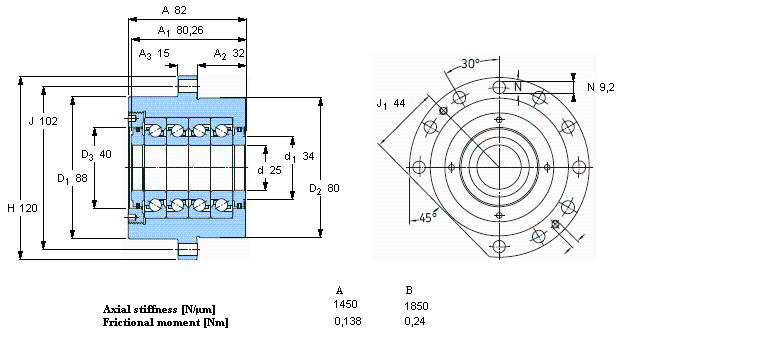

FBSA205/QBC轴承 样本图纸
