SKF轴承FBSA206A/QFC
最近更新：2017-4-25
凯诺永晟轴承有限公司专业经销SKF轴承,FBSA206A/QFC轴承在我公司有售,SKF角接触推力球轴承 for screw drives, cartridge units with flanged housingFBSA206A/QFC轴承参数为:30mm×88mm×86mm,我公司还经营其他进口轴承品牌的SKF FBSA206A/QFC轴承同类产品及FBSA206A/QFC轴承相关替代型号,需要FBSA206A/QFC轴承的图纸、报价等资料请联系销售人员!咨询电话:0512-57922999/000
公司还为您推荐以下型号： FBSA206A/QBC轴承 7203CDB轴承 23280RHAK+AH3280轴承 GT31轴承 7212AC/DB轴承 RRY12-VA轴承 NKI50/25轴承 TAF1-9512526轴承 NF326M轴承 RASE15/16轴承 EW210轴承 FBSA207/DB轴承
报 价：电询0512-57922999/000
品 牌：SKF
系 列：角接触推力球轴承 for screw drives, cartridge units with flanged housing
型 号：FBSA206A/QFC
内 径：30
外 径：88
厚 度：86
品 牌：SKF
系 列：角接触推力球轴承 for screw drives, cartridge units with flanged housing
型 号：FBSA206A/QFC
内 径：30
外 径：88
厚 度：86
SKF轴承FBSA206A/QFC尺寸参数
| 角接触推力球轴承 for screw drives, cartridge units with flanged housing | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 轴和轴承座公差 | |||||||||||
|
|||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 预压 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 30 | 88 | 86 | 46,455 | 142 | 5,3 | 4000 | 2000 | 3,7 | FBSA 206 A/ QFC | BSQU 230/1 TFT | |

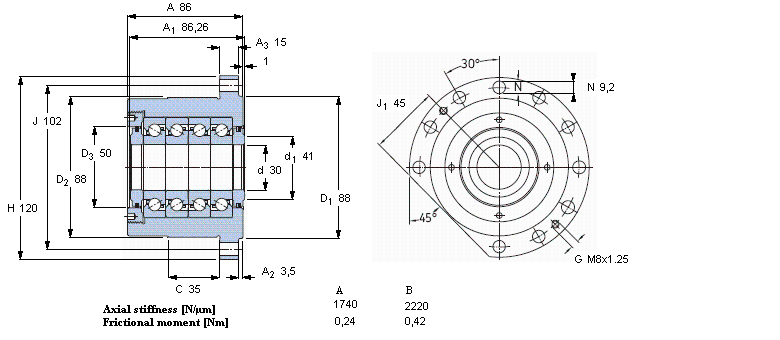

FBSA206A/QFC轴承 样本图纸
