SKF轴承FBSA210/DB
最近更新：2017-4-25
凯诺永晟轴承有限公司专业经销SKF轴承,FBSA210/DB轴承在我公司有售,SKF角接触推力球轴承 for screw drives, cartridge units with flanged housingFBSA210/DB轴承参数为:50mm×124mm×66mm,我公司还经营其他进口轴承品牌的SKF FBSA210/DB轴承同类产品及FBSA210/DB轴承相关替代型号,需要FBSA210/DB轴承的图纸、报价等资料请联系销售人员!咨询电话:0512-57922999/000
公司还为您推荐以下型号： FBSA209/QFC轴承 627-RZ轴承 GE200DO-2RS轴承 NJ2224轴承 BCE78轴承 7318-B-JP轴承 6818LLB轴承 NUP309ECM轴承 51152轴承 52308轴承 GE12-FW轴承 FBSA210/DF轴承
报 价：电询0512-57922999/000
品 牌：SKF
系 列：角接触推力球轴承 for screw drives, cartridge units with flanged housing
型 号：FBSA210/DB
内 径：50
外 径：124
厚 度：66
品 牌：SKF
系 列：角接触推力球轴承 for screw drives, cartridge units with flanged housing
型 号：FBSA210/DB
内 径：50
外 径：124
厚 度：66
SKF轴承FBSA210/DB尺寸参数
| 角接触推力球轴承 for screw drives, cartridge units with flanged housing | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 轴和轴承座公差 | |||||||||||
|
|||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 预压 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 50 | 124 | 66 | 46,5 | 146 | 5,4 | 4800 | 2400 | 5,7 | FBSA 210/ DB | BSDU 250 DD | |

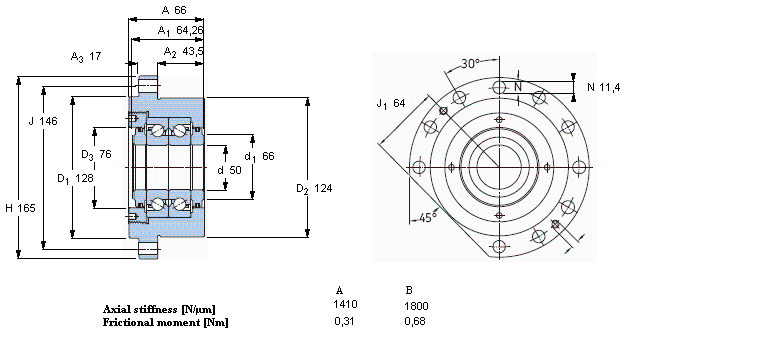

FBSA210/DB轴承 样本图纸
