SKF轴承FBSA206/DB
最近更新：2017-4-25
凯诺永晟轴承有限公司专业经销SKF轴承,FBSA206/DB轴承在我公司有售,SKF角接触推力球轴承 for screw drives, cartridge units with flanged housingFBSA206/DB轴承参数为:30mm×80mm×52mm,我公司还经营其他进口轴承品牌的SKF FBSA206/DB轴承同类产品及FBSA206/DB轴承相关替代型号,需要FBSA206/DB轴承的图纸、报价等资料请联系销售人员!咨询电话:0512-57922999/000
公司还为您推荐以下型号： FBSA205/QFC轴承 23130EX1W33轴承 62305.2RSR轴承 UCF206-103D1轴承 BT4B328974G/HA1VA901轴承 4T-32011X轴承 2320K.M.C3轴承 31306-A轴承 23240B.MB轴承 SL181880-E轴承 7313CDB轴承 FBSA206/DF轴承
报 价：电询0512-57922999/000
品 牌：SKF
系 列：角接触推力球轴承 for screw drives, cartridge units with flanged housing
型 号：FBSA206/DB
内 径：30
外 径：80
厚 度：52
品 牌：SKF
系 列：角接触推力球轴承 for screw drives, cartridge units with flanged housing
型 号：FBSA206/DB
内 径：30
外 径：80
厚 度：52
SKF轴承FBSA206/DB尺寸参数
| 角接触推力球轴承 for screw drives, cartridge units with flanged housing | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 轴和轴承座公差 | |||||||||||
|
|||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 预压 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 30 | 80 | 52 | 28,5 | 71 | 2,65 | 6400 | 3200 | 2,5 | FBSA 206/ DB | BSDU 230 DD | |

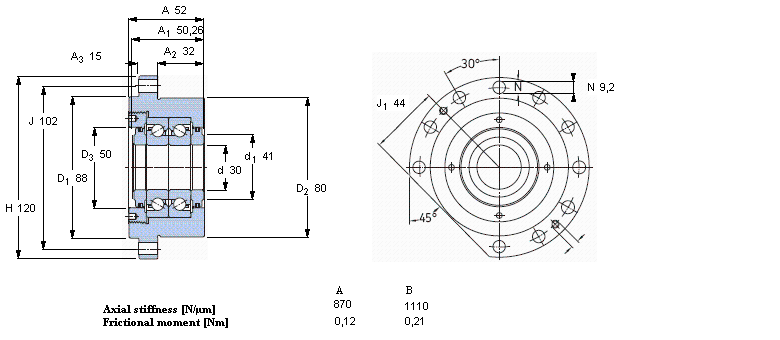

FBSA206/DB轴承 样本图纸
