SKF轴承FBSA210A/QBC
最近更新：2017-4-25
凯诺永晟轴承有限公司专业经销SKF轴承,FBSA210A/QBC轴承在我公司有售,SKF角接触推力球轴承 for screw drives, cartridge units with flanged housingFBSA210A/QBC轴承参数为:50mm×128mm×106mm,我公司还经营其他进口轴承品牌的SKF FBSA210A/QBC轴承同类产品及FBSA210A/QBC轴承相关替代型号,需要FBSA210A/QBC轴承的图纸、报价等资料请联系销售人员!咨询电话:0512-57922999/000
公司还为您推荐以下型号： FBSA210/QFC轴承 NU204R轴承 81220-TV轴承 NA6910U轴承 6803V轴承 HJ334轴承 GIL17-UK轴承 N418M轴承 6310-2Z/VA228轴承 CSXG055轴承 292/500E.MB轴承 FBSA210A/QFC轴承
报 价：电询0512-57922999/000
品 牌：SKF
系 列：角接触推力球轴承 for screw drives, cartridge units with flanged housing
型 号：FBSA210A/QBC
内 径：50
外 径：128
厚 度：106
品 牌：SKF
系 列：角接触推力球轴承 for screw drives, cartridge units with flanged housing
型 号：FBSA210A/QBC
内 径：50
外 径：128
厚 度：106
SKF轴承FBSA210A/QBC尺寸参数
| 角接触推力球轴承 for screw drives, cartridge units with flanged housing | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 轴和轴承座公差 | |||||||||||
|
|||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 预压 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 50 | 128 | 106 | 75,795 | 292 | 10,8 | 3000 | 1500 | 9,3 | FBSA 210 A/ QBC | BSQU 250/1 TDT | |

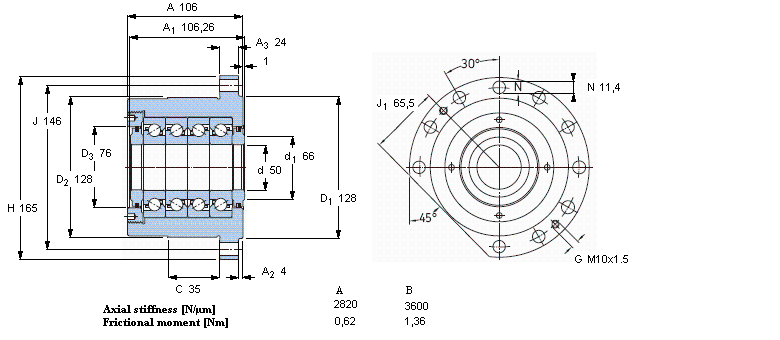

FBSA210A/QBC轴承 样本图纸
