SKF轴承FBSA207/DF
最近更新：2017-4-25
凯诺永晟轴承有限公司专业经销SKF轴承,FBSA207/DF轴承在我公司有售,SKF角接触推力球轴承 for screw drives, cartridge units with flanged housingFBSA207/DF轴承参数为:35mm×90mm×52mm,我公司还经营其他进口轴承品牌的SKF FBSA207/DF轴承同类产品及FBSA207/DF轴承相关替代型号,需要FBSA207/DF轴承的图纸、报价等资料请联系销售人员!咨询电话:0512-57922999/000
公司还为您推荐以下型号： FBSA207/DB轴承 NJ328+HJ328轴承 7308AC/DF轴承 29376轴承 RT625轴承 GTR455930轴承 61917-2RZ轴承 869/854轴承 B71918-E-2RSD-T-P4S轴承 29590/29521轴承 NJ330EM+HJ330E轴承 FBSA207/QBC轴承
报 价：电询0512-57922999/000
品 牌：SKF
系 列：角接触推力球轴承 for screw drives, cartridge units with flanged housing
型 号：FBSA207/DF
内 径：35
外 径：90
厚 度：52
品 牌：SKF
系 列：角接触推力球轴承 for screw drives, cartridge units with flanged housing
型 号：FBSA207/DF
内 径：35
外 径：90
厚 度：52
SKF轴承FBSA207/DF尺寸参数
| 角接触推力球轴承 for screw drives, cartridge units with flanged housing | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 轴和轴承座公差 | |||||||||||
|
|||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 预压 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 35 | 90 | 52 | 36,5 | 98 | 3,65 | 5600 | 2800 | 3,2 | FBSA 207/ DF | BSDU 235 FF | |

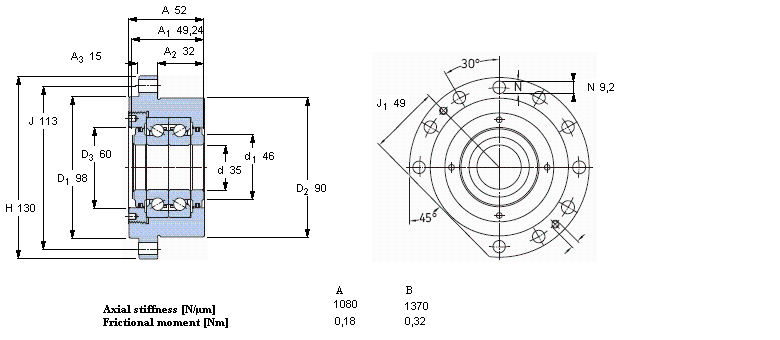

FBSA207/DF轴承 样本图纸
