SKF轴承FBSA212A/QBC
最近更新：2017-4-25
凯诺永晟轴承有限公司专业经销SKF轴承,FBSA212A/QBC轴承在我公司有售,SKF角接触推力球轴承 for screw drives, cartridge units with flanged housingFBSA212A/QBC轴承参数为:60mm×145mm×114mm,我公司还经营其他进口轴承品牌的SKF FBSA212A/QBC轴承同类产品及FBSA212A/QBC轴承相关替代型号,需要FBSA212A/QBC轴承的图纸、报价等资料请联系销售人员!咨询电话:0512-57922999/000
公司还为您推荐以下型号： FBSA210A/QFC轴承 CF5FWBR轴承 23030CCK/W33轴承 7200-B-JP轴承 EE132083/132126D轴承 NUP2322ECM轴承 K21x25x13轴承 6824DD轴承 22209EK+AH309轴承 1218K轴承 NCS2820轴承 FBSA212A/QFC轴承
报 价：电询0512-57922999/000
品 牌：SKF
系 列：角接触推力球轴承 for screw drives, cartridge units with flanged housing
型 号：FBSA212A/QBC
内 径：60
外 径：145
厚 度：114
品 牌：SKF
系 列：角接触推力球轴承 for screw drives, cartridge units with flanged housing
型 号：FBSA212A/QBC
内 径：60
外 径：145
厚 度：114
SKF轴承FBSA212A/QBC尺寸参数
| 角接触推力球轴承 for screw drives, cartridge units with flanged housing | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 轴和轴承座公差 | |||||||||||
|
|||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 预压 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 60 | 145 | 114 | 113,285 | 432 | 16 | 2500 | 1250 | 12,3 | FBSA 212 A/ QBC | BSQU 260/1 TDT | |

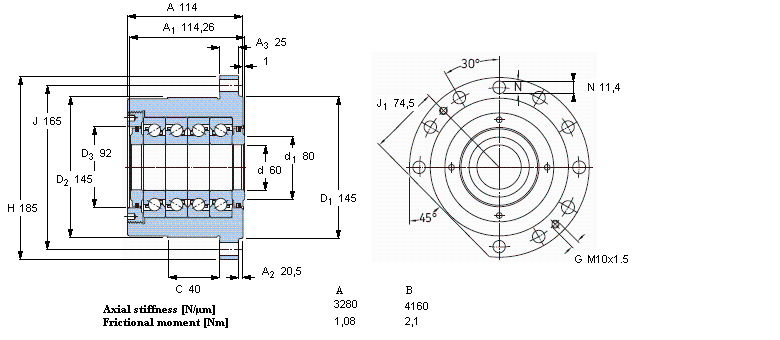

FBSA212A/QBC轴承 样本图纸
