SKF轴承BEAM050140-2RS
最近更新：2017-4-25
凯诺永晟轴承有限公司专业经销SKF轴承,BEAM050140-2RS轴承在我公司有售,SKF角接触推力球轴承 for screw drives, double direction, for bolt mountingBEAM050140-2RS轴承参数为:50mm×140mm×54mm,我公司还经营其他进口轴承品牌的SKF BEAM050140-2RS轴承同类产品及BEAM050140-2RS轴承相关替代型号,需要BEAM050140-2RS轴承的图纸、报价等资料请联系销售人员!咨询电话:0512-57922999/000
公司还为您推荐以下型号： BEAM050115-2Z轴承 6022-RS轴承 NU1017M轴承 7215C轴承 SAKB22F轴承 NU316-E-TVP2轴承 4T-46790/46720轴承 HM89446A轴承 23276BKMBH3276HG轴承 6021-RZ轴承 NU1017ML轴承 BEAM050140-2Z轴承
报 价：电询0512-57922999/000
品 牌：SKF
系 列：角接触推力球轴承 for screw drives, double direction, for bolt mounting
型 号：BEAM050140-2RS
内 径：50
外 径：140
厚 度：54
品 牌：SKF
系 列：角接触推力球轴承 for screw drives, double direction, for bolt mounting
型 号：BEAM050140-2RS
内 径：50
外 径：140
厚 度：54
SKF轴承BEAM050140-2RS尺寸参数
| 角接触推力球轴承 for screw drives, double direction, for bolt mounting | ||||||||||
| 公差, inner rings, outer rings, see also text | ||||||||||
| Preload, see specific bearing, see also text | ||||||||||
| Shaft fits, housing fits | ||||||||||
| 轴和轴承座公差 | ||||||||||
|
||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | Attainable speed | 体积 | 型号 | |||||
| 动态 | 静态 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 50 | 140 | 54 | 112 | 250 | 9,3 | 1700 | 4,70 | BEAM 050140-2RS | BEAM 50/140/C 7P60 | |

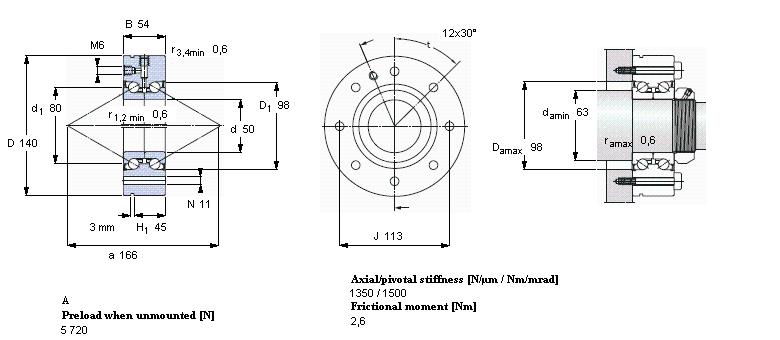

BEAM050140-2RS轴承 样本图纸
