SKF轴承BEAM017062-2Z/PE
最近更新：2017-4-25
凯诺永晟轴承有限公司专业经销SKF轴承,BEAM017062-2Z/PE轴承在我公司有售,SKF角接触推力球轴承 for screw drives, double direction, for bolt mountingBEAM017062-2Z/PE轴承参数为:17mm×62mm×25mm,我公司还经营其他进口轴承品牌的SKF BEAM017062-2Z/PE轴承同类产品及BEAM017062-2Z/PE轴承相关替代型号,需要BEAM017062-2Z/PE轴承的图纸、报价等资料请联系销售人员!咨询电话:0512-57922999/000
公司还为您推荐以下型号： BEAM017062-2Z轴承 33210JR轴承 294/900EF轴承 WEEYB003-2Z轴承 ZKLDF150轴承 222SM70-TVPA轴承 7207B轴承 IR32X37X30轴承 567-S/563D轴承 N230M轴承 RNAFW506240轴承 BEAM020068-2RS轴承
报 价：电询0512-57922999/000
品 牌：SKF
系 列：角接触推力球轴承 for screw drives, double direction, for bolt mounting
型 号：BEAM017062-2Z/PE
内 径：17
外 径：62
厚 度：25
品 牌：SKF
系 列：角接触推力球轴承 for screw drives, double direction, for bolt mounting
型 号：BEAM017062-2Z/PE
内 径：17
外 径：62
厚 度：25
SKF轴承BEAM017062-2Z/PE尺寸参数
| 角接触推力球轴承 for screw drives, double direction, for bolt mounting | ||||||||||
| 公差, inner rings, outer rings, see also text | ||||||||||
| Preload, see specific bearing, see also text | ||||||||||
| Shaft fits, housing fits | ||||||||||
| 轴和轴承座公差 | ||||||||||
|
||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | Attainable speed | 体积 | 型号 | |||||
| 动态 | 静态 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 17 | 62 | 25 | 19 | 31 | 1,16 | 6300 | 0,45 | BEAM 017062-2Z/PE | BEAM 17/62/Z SQP60 | |

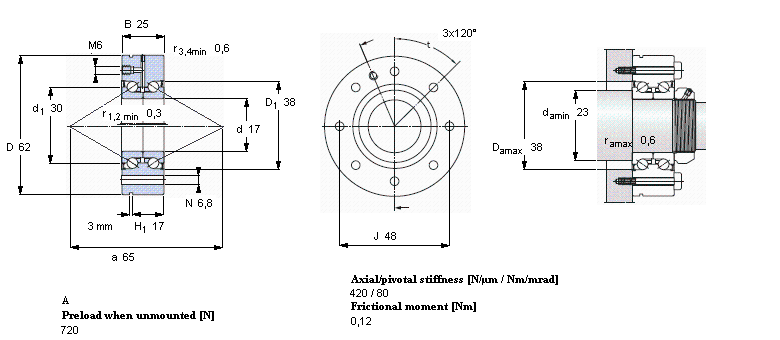

BEAM017062-2Z/PE轴承 样本图纸
