SKF轴承BEAM030080-2RS
最近更新：2017-4-25
凯诺永晟轴承有限公司专业经销SKF轴承,BEAM030080-2RS轴承在我公司有售,SKF角接触推力球轴承 for screw drives, double direction, for bolt mountingBEAM030080-2RS轴承参数为:30mm×80mm×28mm,我公司还经营其他进口轴承品牌的SKF BEAM030080-2RS轴承同类产品及BEAM030080-2RS轴承相关替代型号,需要BEAM030080-2RS轴承的图纸、报价等资料请联系销售人员!咨询电话:0512-57922999/000
公司还为您推荐以下型号： BEAM025075-2Z/PE轴承 HCB71944-E-T-P4S轴承 SY45TF轴承 CF24-1V轴承 7315AC/DT轴承 RNA4904轴承 5217轴承 39590轴承 7415BM轴承 K70×76×20轴承 H936340/H936313轴承 BEAM030080-2RS/PE轴承
报 价：电询0512-57922999/000
品 牌：SKF
系 列：角接触推力球轴承 for screw drives, double direction, for bolt mounting
型 号：BEAM030080-2RS
内 径：30
外 径：80
厚 度：28
品 牌：SKF
系 列：角接触推力球轴承 for screw drives, double direction, for bolt mounting
型 号：BEAM030080-2RS
内 径：30
外 径：80
厚 度：28
SKF轴承BEAM030080-2RS尺寸参数
| 角接触推力球轴承 for screw drives, double direction, for bolt mounting | ||||||||||
| 公差, inner rings, outer rings, see also text | ||||||||||
| Preload, see specific bearing, see also text | ||||||||||
| Shaft fits, housing fits | ||||||||||
| 轴和轴承座公差 | ||||||||||
|
||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | Attainable speed | 体积 | 型号 | |||||
| 动态 | 静态 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 30 | 80 | 28 | 29,1 | 64 | 2,36 | 2600 | 0,78 | BEAM 030080-2RS | BEAM 30/80/C 7P60 | |

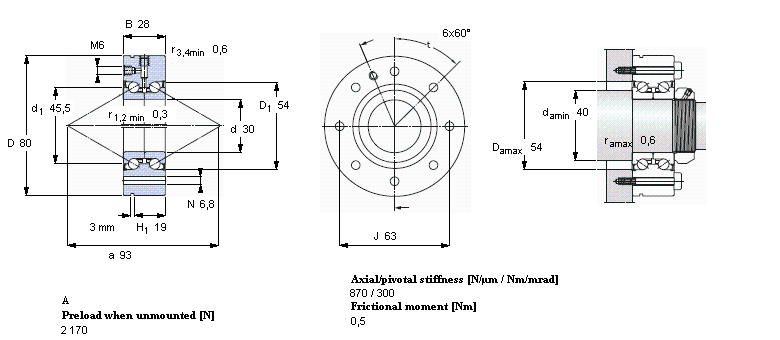

BEAM030080-2RS轴承 样本图纸
