SKF轴承BEAM020068-2Z/PE
最近更新：2017-4-25
凯诺永晟轴承有限公司专业经销SKF轴承,BEAM020068-2Z/PE轴承在我公司有售,SKF角接触推力球轴承 for screw drives, double direction, for bolt mountingBEAM020068-2Z/PE轴承参数为:20mm×68mm×28mm,我公司还经营其他进口轴承品牌的SKF BEAM020068-2Z/PE轴承同类产品及BEAM020068-2Z/PE轴承相关替代型号,需要BEAM020068-2Z/PE轴承的图纸、报价等资料请联系销售人员!咨询电话:0512-57922999/000
公司还为您推荐以下型号： BEAM020068-2Z轴承 NNU4940K轴承 RCJO40轴承 3203B.2ZR.TVH轴承 2212轴承 NNCL4838CV轴承 K50×58×20轴承 64450/64700D轴承 SNL3064TURT轴承 71913C/DB轴承 GTR324530轴承 BEAM025075-2RS轴承
报 价：电询0512-57922999/000
品 牌：SKF
系 列：角接触推力球轴承 for screw drives, double direction, for bolt mounting
型 号：BEAM020068-2Z/PE
内 径：20
外 径：68
厚 度：28
品 牌：SKF
系 列：角接触推力球轴承 for screw drives, double direction, for bolt mounting
型 号：BEAM020068-2Z/PE
内 径：20
外 径：68
厚 度：28
SKF轴承BEAM020068-2Z/PE尺寸参数
| 角接触推力球轴承 for screw drives, double direction, for bolt mounting | ||||||||||
| 公差, inner rings, outer rings, see also text | ||||||||||
| Preload, see specific bearing, see also text | ||||||||||
| Shaft fits, housing fits | ||||||||||
| 轴和轴承座公差 | ||||||||||
|
||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | Attainable speed | 体积 | 型号 | |||||
| 动态 | 静态 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 20 | 68 | 28 | 26 | 46,5 | 1,73 | 6000 | 0,61 | BEAM 020068-2Z/PE | BEAM 20/68/Z SQP60 | |

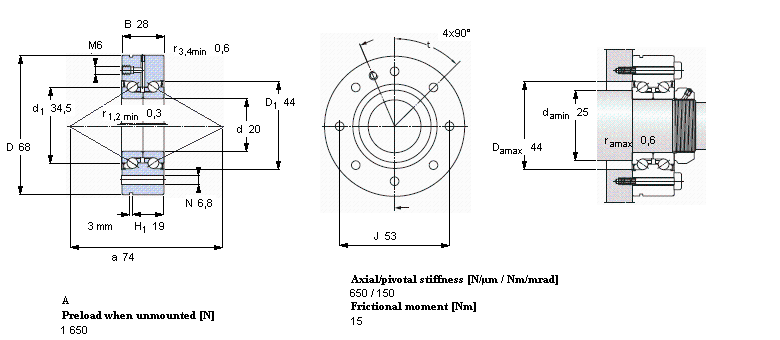

BEAM020068-2Z/PE轴承 样本图纸
