SKF轴承BEAM040100-2RS
最近更新：2017-4-25
凯诺永晟轴承有限公司专业经销SKF轴承,BEAM040100-2RS轴承在我公司有售,SKF角接触推力球轴承 for screw drives, double direction, for bolt mountingBEAM040100-2RS轴承参数为:40mm×100mm×34mm,我公司还经营其他进口轴承品牌的SKF BEAM040100-2RS轴承同类产品及BEAM040100-2RS轴承相关替代型号,需要BEAM040100-2RS轴承的图纸、报价等资料请联系销售人员!咨询电话:0512-57922999/000
公司还为您推荐以下型号： BEAM035090-2Z轴承 NJ413-M1+HJ413轴承 63032RU轴承 SIQG80ES轴承 23168CCK/W33轴承 BA1B311576轴承 KT657320轴承 HM252348/HM252315D轴承 23988EW33K轴承 6200NR轴承 HR150KBE52X+L轴承 BEAM040100-2Z轴承
报 价：电询0512-57922999/000
品 牌：SKF
系 列：角接触推力球轴承 for screw drives, double direction, for bolt mounting
型 号：BEAM040100-2RS
内 径：40
外 径：100
厚 度：34
品 牌：SKF
系 列：角接触推力球轴承 for screw drives, double direction, for bolt mounting
型 号：BEAM040100-2RS
内 径：40
外 径：100
厚 度：34
SKF轴承BEAM040100-2RS尺寸参数
| 角接触推力球轴承 for screw drives, double direction, for bolt mounting | ||||||||||
| 公差, inner rings, outer rings, see also text | ||||||||||
| Preload, see specific bearing, see also text | ||||||||||
| Shaft fits, housing fits | ||||||||||
| 轴和轴承座公差 | ||||||||||
|
||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | Attainable speed | 体积 | 型号 | |||||
| 动态 | 静态 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 40 | 100 | 34 | 43,6 | 102 | 3,75 | 2200 | 1,45 | BEAM 040100-2RS | BEAM 40/100/C 7P60 | |

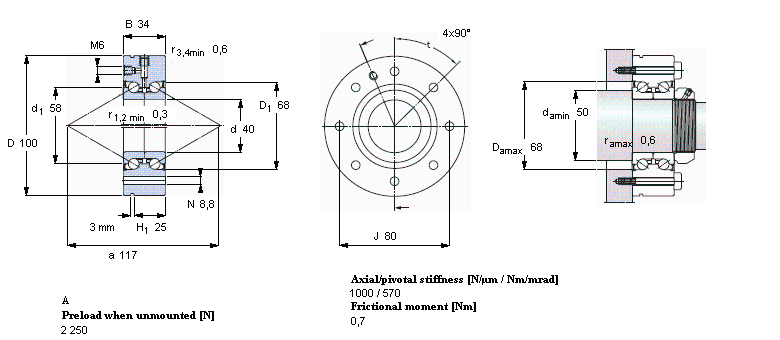

BEAM040100-2RS轴承 样本图纸
