SKF轴承BEAM030100-2RS
最近更新：2017-4-25
凯诺永晟轴承有限公司专业经销SKF轴承,BEAM030100-2RS轴承在我公司有售,SKF角接触推力球轴承 for screw drives, double direction, for bolt mountingBEAM030100-2RS轴承参数为:30mm×100mm×38mm,我公司还经营其他进口轴承品牌的SKF BEAM030100-2RS轴承同类产品及BEAM030100-2RS轴承相关替代型号,需要BEAM030100-2RS轴承的图纸、报价等资料请联系销售人员!咨询电话:0512-57922999/000
公司还为您推荐以下型号： BEAM030080-2Z轴承 NNCL4916CV轴承 7313BDT轴承 NUP2217轴承 S7019DB/P7轴承 TLAM1616Z轴承 6009-RS轴承 K32X39X16轴承 7222轴承 NJ203-E-TVP2+HJ203E轴承 RS10/8-1轴承 BEAM030100-2Z轴承
报 价：电询0512-57922999/000
品 牌：SKF
系 列：角接触推力球轴承 for screw drives, double direction, for bolt mounting
型 号：BEAM030100-2RS
内 径：30
外 径：100
厚 度：38
品 牌：SKF
系 列：角接触推力球轴承 for screw drives, double direction, for bolt mounting
型 号：BEAM030100-2RS
内 径：30
外 径：100
厚 度：38
SKF轴承BEAM030100-2RS尺寸参数
| 角接触推力球轴承 for screw drives, double direction, for bolt mounting | ||||||||||
| 公差, inner rings, outer rings, see also text | ||||||||||
| Preload, see specific bearing, see also text | ||||||||||
| Shaft fits, housing fits | ||||||||||
| 轴和轴承座公差 | ||||||||||
|
||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | Attainable speed | 体积 | 型号 | |||||
| 动态 | 静态 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 30 | 100 | 38 | 60 | 108 | 4 | 2600 | 1,65 | BEAM 030100-2RS | BEAM 30/100/C 7P60 | |

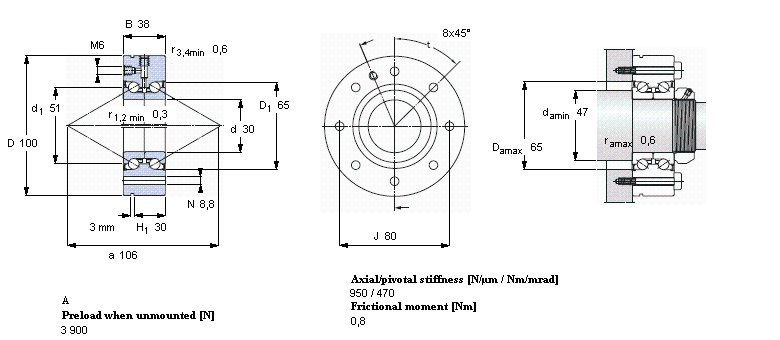

BEAM030100-2RS轴承 样本图纸
