SKF轴承BEAM035090-2Z
最近更新：2017-4-25
凯诺永晟轴承有限公司专业经销SKF轴承,BEAM035090-2Z轴承在我公司有售,SKF角接触推力球轴承 for screw drives, double direction, for bolt mountingBEAM035090-2Z轴承参数为:35mm×90mm×34mm,我公司还经营其他进口轴承品牌的SKF BEAM035090-2Z轴承同类产品及BEAM035090-2Z轴承相关替代型号,需要BEAM035090-2Z轴承的图纸、报价等资料请联系销售人员!咨询电话:0512-57922999/000
公司还为您推荐以下型号： BEAM035090-2RS轴承 11162R/300轴承 7309CDF轴承 7217CD/DT轴承 7230B/DB轴承 HR32906J轴承 RASE40-N轴承 24122CK30轴承 JK0S060轴承 KMT24轴承 7324BGBM轴承 BEAM040100-2RS轴承
报 价：电询0512-57922999/000
品 牌：SKF
系 列：角接触推力球轴承 for screw drives, double direction, for bolt mounting
型 号：BEAM035090-2Z
内 径：35
外 径：90
厚 度：34
品 牌：SKF
系 列：角接触推力球轴承 for screw drives, double direction, for bolt mounting
型 号：BEAM035090-2Z
内 径：35
外 径：90
厚 度：34
SKF轴承BEAM035090-2Z尺寸参数
| 角接触推力球轴承 for screw drives, double direction, for bolt mounting | ||||||||||
| 公差, inner rings, outer rings, see also text | ||||||||||
| Preload, see specific bearing, see also text | ||||||||||
| Shaft fits, housing fits | ||||||||||
| 轴和轴承座公差 | ||||||||||
|
||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | Attainable speed | 体积 | 型号 | |||||
| 动态 | 静态 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 35 | 90 | 34 | 41 | 88 | 3,25 | 4000 | 1,15 | BEAM 035090-2Z | BEAM 35/90/Z 7P60 | |

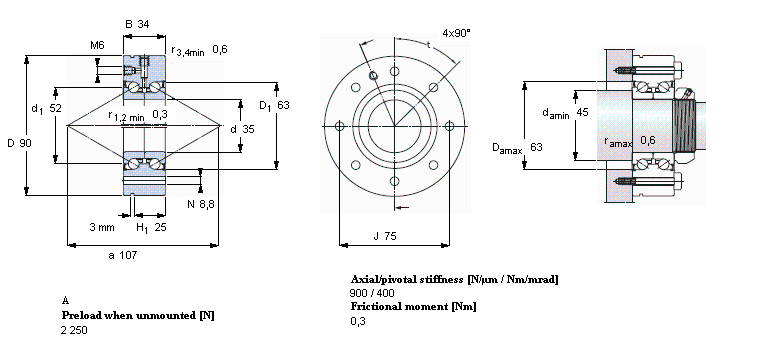

BEAM035090-2Z轴承 样本图纸
